Cabinet Tool

Quickly create cabinets with precise dimensional control.

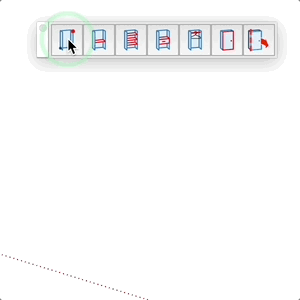

How It Works

1. Define the insertion point (lower corner)
2. Define the width (red line)
3. Define the depth (green line)
4. Define the height (blue line)

Parameters

• Thickness: Enter the panel thickness before starting
• Dimensions: Enter a precise value at each step
• Alt(PC) / Command(Mac) : Toggle between "stud on rail" and "rail on stud"
• Ctrl(PC) / Option(Mac) : Create in a component

Tips

• Dimensions are displayed in real-time
• Cabinet preview at each step
• Height always follows the Z axis
• For upper cabinets, start from the lowest point
